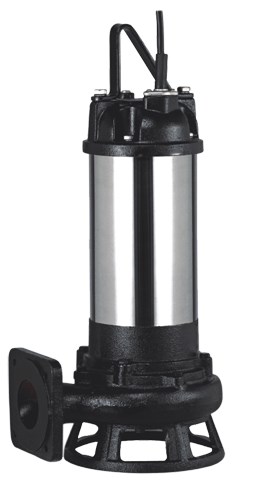

Submersible Sew. Cutter Pump

Sewage14g
Click on image to Zoom
  • Submersible Sew. Cutter Pump
Product Overview
Model BDSK20,  BDSK30,  BDSK50,  BDSK75
Power rating 2.0 to 7.5 HP
Voltage range 380-440V, AC, Three phase, 50Hz
Speed 2900 RPM
Motor Type Dry Type
Head Max. 24 M
Discharge Max. 1000 LPM
Liquid Temp Max. 35 °C
Solid Content Max. 25mm
  • Graded Pump volute and top casing.
  • Stainless steel motor Body.
  • Double Mechanical seal to provide reliable and strong shaft sealing.
  • Easily rewindable with minimum assembly parts.
  • Portable design for easy handling.
  • Special Cutter design impeller for rigid solids.
  • Ideal for Waste Water applications containing soft or fibrous solids.
  • Waist Water treatment.
  • Septic effluent.
  • Industrial Waste Water.
  • Ground Water drainage.
  • Miscellanceous drainage.
  • Hotels,Food Proceessing sludge.
