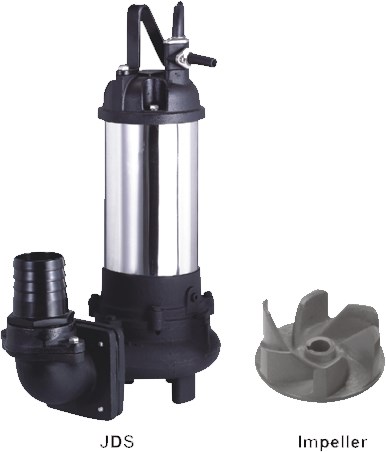

Submersible Dewatering Pumps Mini 2900 RPM
Product Specification
Construction
Application
PDF
Model
BDS10, BDS20, BDS30, BDS50, BDS75
Power rating
1.0 to 7.5 HP
Voltage range
180-220V, AC, Single Phase, 50Hz
380-440V, AC, Three phase, 50Hz
Speed
2900 RPM
Motor Type
Dry Type
Head
Max. 28 M
Discharge
Max. 1300 LPM
Liquid Temp
Max. 35 °C
Solid Content
Max. 20mm
No.
Part
Material
1.
Cable
VCT
2.
Cable Hood
PVC
3.
Handle
SS 304
4.
Motor Cover
FG 200
5.
Seal Housing
FG 200
6.
Bracket
FG 200
7.
Oil Chamber
FG 200
8.
Pump Casing
FG 200
9.
Impleller
FG 200
10.
Mech. Seal
CC/SC
11.
Oil Seal
NBR
12.
Bearing
NTN
13.
Protector
(T.I.YAMADA)
14.
Shaft
SS 410
15.
Motor Housing
SS 304
Graded Pump volute and top casing.
Stainless steel motor Body.
Double Mechanical seal to provide reliable and strong shaft sealing.
Easily rewindable with minimum assembly parts.
Portable design for easy handling.
Ideal for Waste Water applications containing soft or fibrous solids.
Waste Water treatment.
Septic effluent.
Industrial Waste Water.
Ground Water drainage.
