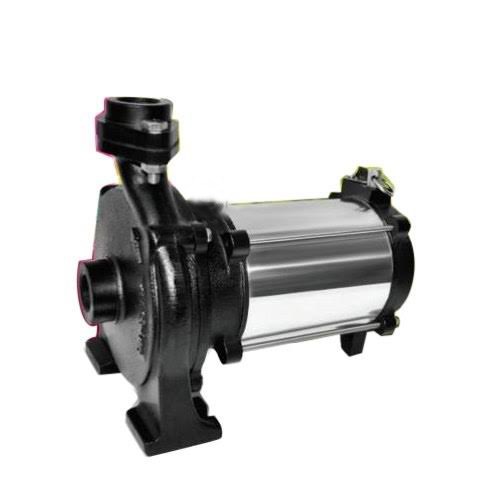

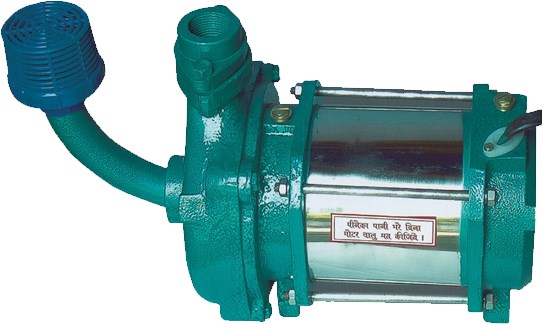

Monosub A

MON11g
Click on image to Zoom
  • Monosub A
Product Overview
Model AH,  AL
Power rating 0.5 - 3.0 HP in Single phase
1.0 - 22.5 HP in Three phase
Voltage range 180-220V, AC, Single Phase, 50Hz
380-440V, AC, Three phase, 50Hz
Speed 2900 RPM
Motor Type Water filled
Head Max. 45 M
Discharge Max. 1800 LPM
Liquid Temp Max. 35 °C
Sand Content Max. 50 PPM
  • Water filled motor, easily rewindable.
  • Stainless Steel motor casing.
  • Superior grade casting for the Pump volute & impeller.
  • Energy efficient.
  • Low running cost.
  • Irrigation purposes.
  • Domestic water supply to large residences and multi-storied apartments.
  • Water supply to institutional sectors.
  • Pressure boosting.
  • Fountains, artificial water falls.
