Float18g
Click on image to Zoom

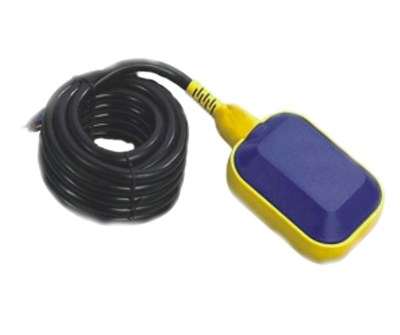

  • Float Switch

Float Switch

Type BS-2 BS-2-M
Float material Polypropylene Polypropylene
Cable specification 0.4sq mm *3 core 0.75sq mm *3 core
Contact rating switch 3a/24v dc 16a/240v ac
Contact form C-no-nc C-no-nc
Operating temp. -10c -110c -10c -110c
Maximum pressure 1 bar 2 bar
Weight approx 550g/3 mtr 550g/3 mtr
Available cable length 1/2/3/5/10/20 1/2/3/5/10/20
Application

Suitable for sensoning/

connecting directly to relay/coil

Suitable for directly

switching on/off

motor where motor load passes through switch.








  1. Special polymer for cable ensures that there is cohesion bonding between cable and plastic layer.
  2. Statistics says 96% of float failure happen when water enters float through this point.
  3. Perfectly sealed feature do not allow water to enter in float thus increasing the reliability of float multifold times.
  4. The advance manufacturing technology and testing processes ensures near to zero manufacturing defects.
  5. Each Float is tested prior to dispatch.
  • Stops Overflow of tanks.
  • Saves electricity.
  • Avoids dry running of pumps
