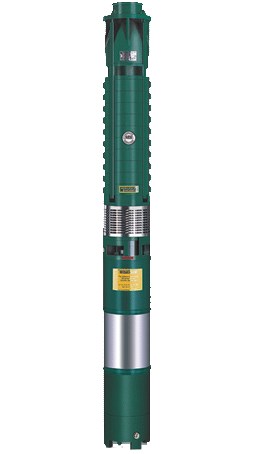

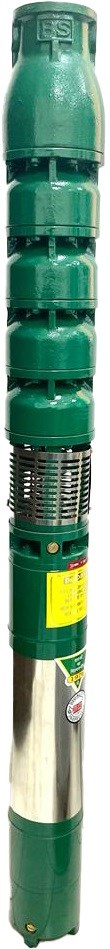

8 Inch 200mm Borewell Submersible Pumpsets
Click on image to Zoom
Product Overview
Product Specification
Construction
Application
Model
JM325, JM425, JM525, JM335, JM435, JM535, JM545, JM645, JM745, CT8A25, CT8A35, CT8A50, MN35, MN45, MN55, MN65
Power rating
15.0 to 75.0HP
Voltage range
380 – 440V, AC, Three Phase, 50 Hz
Speed
2900 RPM
Motor Type
Water filled
Head
Max. 304 M
Discharge
Max. 3000 LPM
Liquid Temp
Max. 35 °C
Sand Content
Max. 50 PPM
Submersible motor & Pump suitable for min.
8" (DN200mm) borewell & above.
Motor is water lubricated, easily rewindable.
Stainless Steel motor body.
Radial and mixed flow models.
Pump casings and discharge outlet of superior cast Iron grade.
Agricultural irrigation including sprinkler system.
Domestic water Supply.
Pressure boosting to multi storied apartments.
Service Stations.
Industrial water Supply.
