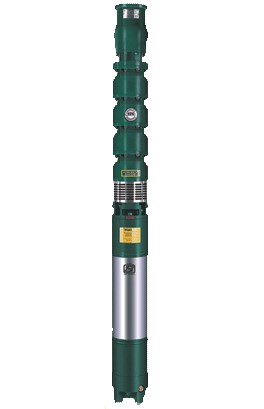

  • 6 Inch 150mm Borewell Submersible Pumpsets
Product Overview
Model CT55,  CT66,  CT77,  J156N,  J156,  J356,  J456,  J556,
Power rating 3.0 to 30.0 HP
Voltage range 380 – 440V, AC, Three Phase,50 Hz
Speed 2900 rpm
Motor Type Water filled
Head Max. 300 M
Discharge Max. 1250 LPM
Liquid Temp Max. 35 °C
Sand Content 50 PPM
  • Submersible motor & Pump suitable for min.
    6" ( DN150mm) borewell & above.
  • Motor is water lubricated, easily rewindable.
  • Stainless Steel motor body.
  • Radial and mixed flow models.
  • Pump casings and discharge outlet of superior cast Iron grade.
  • Agricultural irrigation including sprinkler system.
  • Domestic water Supply.
  • Pressure boosting to multi storied apartments.
  • Service Stations.
  • Industrial water Supply.
Model Type :SPMS1
