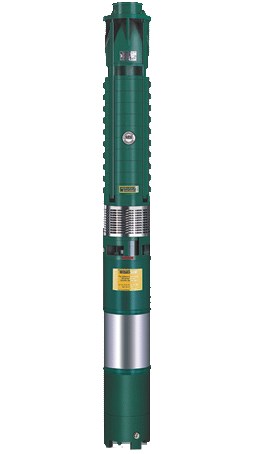

10 Inch 250mm Borewell Submersible Pumpsets

10inchg
Click on image to Zoom
  • 10 Inch 250mm Borewell Submersible Pumpsets
Product Overview
Model MN45,  MN55,  MN65,  J10A-m,  J10A,  J10B
Power rating 50 to 100 HP
Voltage range 380 - 440V, AC, Three Phase, 50Hz
Speed 2900 RPM
Motor Type Water filled
Head Max. 260 M
Discharge Max. 3600 LPM
Liquid Temp Max. 35 °C
Sand Content Max. 50 PPM
  • Submersible motor & Pump suitable for min.
    10 " (DN250mm) borewell & above.
  • Motor is water lubricated, easily rewindable.
  • Stainless Steel motor body.
  • Radial and mixed flow models.
  • Pump casings and discharge outlet of superior cast Iron grade.
  • Agricultural irrigation.
  • Water Supply Projects for Large Colonies / Sectors.
  • Pressure boosting to multi storied apartments.
  • Service Stations.
  • Industrial water Supply.
